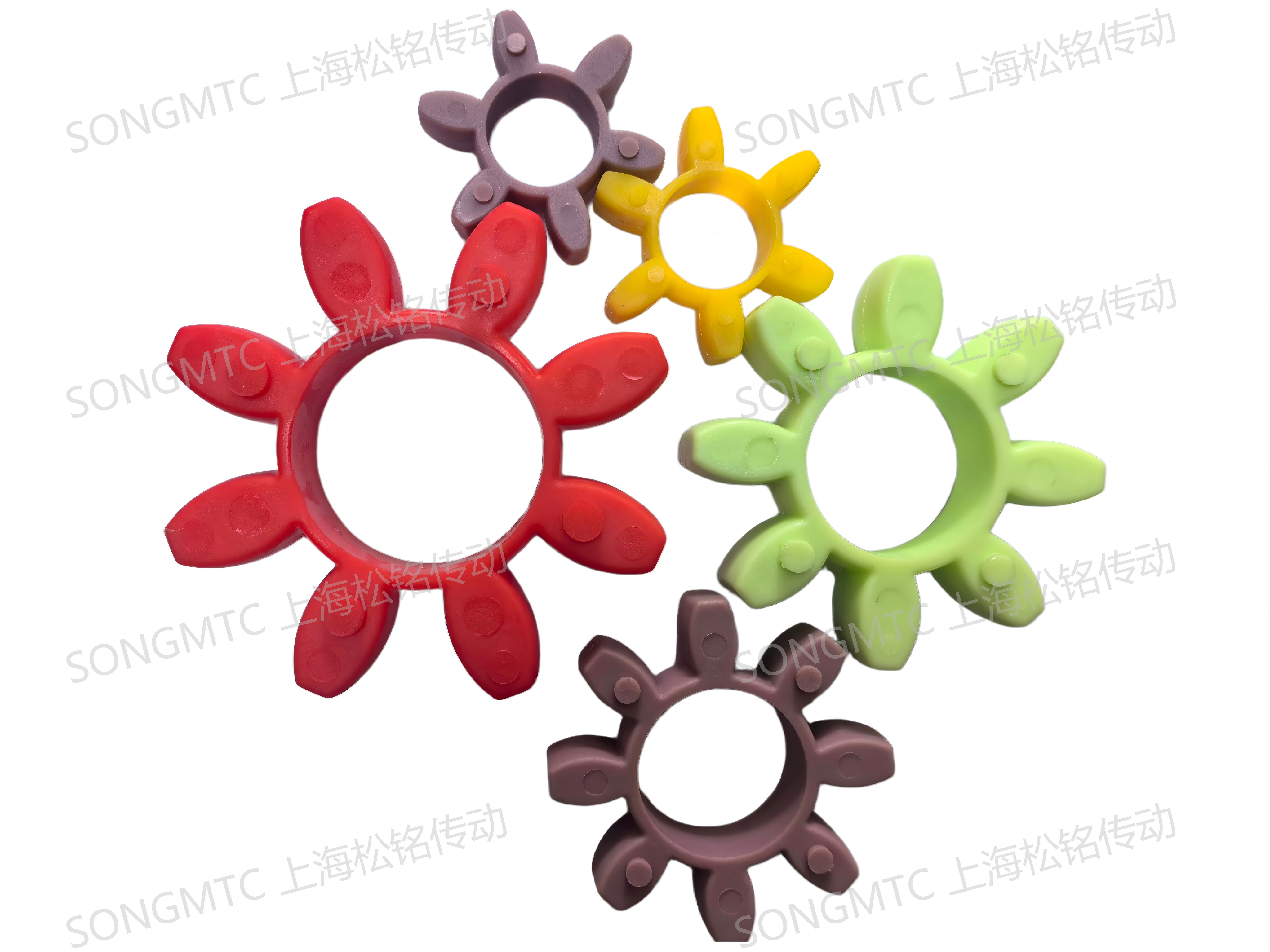

GR Jaw Elastomer/Rubber Coupling Insert
Inquiry Email：[email protected]
| Coupling Type | Elastomer Type |
Outside D(mm) |
Inside d(mm) |
Thickness G(mm) |
Number of Petals |
| XL/XLD1 | GR19 | 40 | 18 | 12 | 6 |
| XL/XLD2 | GR24 | 54 | 26 | 14 | 8 |
| XL/XLD3 | GR28 | 65 | 30 | 15 | 8 |
| XL/XLD4 | GR38 | 80 | 38 | 18 | 8 |
| XL/XLD5 | GR42 | 95 | 46 | 20 | 8 |
| XL/XLD6 | GR48 | 104 | 51 | 21 | 8 |
| XL/XLD7 | GR55 | 120 | 60 | 22 | 8 |
| XL/XLD8 | GR65 | 135 | 68 | 26 | 8 |
| XL/XLD9 | GR75 | 160 | 80 | 30 | 8 |
| XL/XLD10 | GR90 | 199 | 100 | 34 | 10 |
| XL/XLD11 | GR100 | 225 | 113 | 38 | 10 |
| XL/XLD12 | GR110 | 255 | 127 | 42 | 10 |
| XL/XLD13 | GR125 | 290 | 147 | 46 | 10 |
| XL/XLD14 | GR140 | 320 | 165 | 50 | 10 |
| XL/XLD15 | GR160 | 370 | 190 | 57 | 10 |
| XL/XLD16 | GR180 | 420 | 220 | 64 | 12 |
